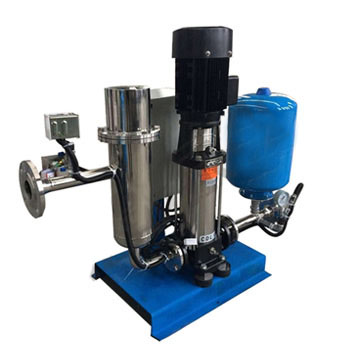

CDLF智能变频多级离心泵泵组概述：
单泵变频供水设备是一种小体积、高效能，同样达到加压供水效果的供水设备。同样的效果不同的采购成本，插电即用，无需专业的技术人员进行调节，自动调节出水大小。适用于独栋别墅、自建楼房、小型工厂、园林灌溉等小流量的供水场所使用。
规 格
详细说明
供水流量Q
0m3/h~8m3/h
供水压力H
0m~45m
占地尺寸
长： mm ，宽： mm
运行方式
通用型智能控制软件：一种软件576种运行模式智能变换
保护/启动紧急信号
短路、过载、缺相保护，指示灯启动紧急信号。变频器有更完善的自我保护
设备材质
不锈钢304
防护等级
电机IP44；控制柜IP41
工作条件
安装条件
具有足够承重能力的混凝土平台或能保证正常工作要求的平整地面。
电源
220V（±10%），50HZ（±5%），应具有良好接地线，接地电阻小于4欧
环境
室内安装使用，0-40℃不冻结，90%RH以下不结露，无腐蚀、易燃、易爆气体
海拔、震动
海拔1000m以下，5.9m/s(0.6g)以下
CDLF智能变频多级离心泵泵组型号意义：

CDLF智能变频多级离心泵泵组性能参数表：
|
型号
|
扬程(m)
|
流量(m3/h)
|
电机功率(KW)
|
转速(r/min)
|
|
CDL1-2
|
11.5
|
1
|
0.37
|
2900
|
|
CDL1-3
|
17
|
1
|
0.37
|
2900
|
|
CDL1-4
|
22.5
|
1
|
0.37
|
2900
|
|
CDL1-5
|
28
|
1
|
0.37
|
2900
|
|
CDL1-6
|
33.5
|
1
|
0.37
|
2900
|
|
CDL1-7
|
39
|
1
|
0.37
|
2900
|
|
CDL1-8
|
45
|
1
|
0.55
|
2900
|
|
CDL1-9
|
51
|
1
|
0.55
|
2900
|
|
CDL1-10
|
57
|
1
|
0.55
|
2900
|
|
CDL1-17
|
95
|
1
|
1.1
|
2900
|
|
CDL1-19
|
106
|
1
|
1.1
|
2900
|
|
CDL1-21
|
117
|
1
|
1.1
|
2900
|
|
CDL1-23
|
128
|
1
|
1.1
|
2900
|
|
CDL1-25
|
139
|
1
|
1.5
|
2900
|
|
CDL1-27
|
150
|
1
|
1.5
|
2900
|
|
CDL1-30
|
166
|
1
|
1.5
|
2900
|
|
CDL1-33
|
183
|
1
|
2.2
|
2900
|
|
CDL1-36
|
200
|
1
|
2.2
|
2900
|
|
CDL2-2
|
15
|
2
|
0.37
|
2900
|
|
CDL2-3
|
22
|
2
|
0.37
|
2900
|
|
CDL2-4
|
30
|
2
|
0.55
|
2900
|
|
CDL2-5
|
37
|
2
|
0.55
|
2900
|
|
CDL2-6
|
45
|
2
|
0.75
|
2900
|
|
CDL2-7
|
52
|
2
|
0.75
|
2900
|
|
CDL2-9
|
67
|
2
|
1.1
|
2900
|
|
CDL2-11
|
82
|
2
|
1.1
|
2900
|
|
CDL2-13
|
98
|
2
|
1.5
|
2900
|
|
CDL2-15
|
112
|
2
|
1.5
|
2900
|
|
CDL2-18
|
136
|
2
|
2.2
|
2900
|
|
CDL2-22
|
165
|
2
|
2.2
|
2900
|
|
CDL2-26
|
198
|
2
|
3.0
|
2900
|
|
CDL3-2
|
9
|
3
|
0.37
|
2900
|
|
CDL3-3
|
14
|
3
|
0.37
|
2900
|
|
CDL3-4
|
19
|
3
|
0.37
|
2900
|
|
CDL3-5
|
23
|
3
|
0.37
|
2900
|
|
CDL3-6
|
28
|
3
|
0.55
|
2900
|
|
CDL3-7
|
32
|
3
|
0.55
|
2900
|
|
CDL3-8
|
37
|
3
|
0.75
|
2900
|
|
CDL3-9
|
42
|
3
|
0.75
|
2900
|
|
CDL3-10
|
47
|
3
|
0.75
|
2900
|
|
CDL3-11
|
51
|
3
|
1.1
|
2900
|
|
CDL3-12
|
55
|
3
|
1.1
|
2900
|
|
CDL3-13
|
60
|
3
|
1.1
|
2900
|
|
CDL3-15
|
69
|
3
|
1.1
|
2900
|
|
CDL3-17
|
79
|
3
|
1.5
|
2900
|
|
CDL3-19
|
88
|
3
|
1.5
|
2900
|
|
CDL3-21
|
98
|
3
|
2.2
|
2900
|
|
CDL3-23
|
107
|
3
|
2.2
|
2900
|
|
CDL3-25
|
116
|
3
|
2.2
|
2900
|
|
CDL3-27
|
124
|
3
|
2.2
|
2900
|
|
CDL3-29
|
133
|
3
|
2.2
|
2900
|
|
CDL3-31
|
142
|
3
|
3
|
2900
|
|
CDL3-33
|
151
|
3
|
3
|
2900
|
|
CDL3-36
|
168
|
3
|
3
|
2900
|
|
CDL4-2
|
15
|
4
|
0.37
|
2900
|
|
CDL4-3
|
24
|
4
|
0.55
|
2900
|
|
CDL4-4
|
32
|
4
|
0.75
|
2900
|
|
CDL4-5
|
40
|
4
|
1.1
|
2900
|
|
CDL4-6
|
48
|
4
|
1.1
|
2900
|
|
CDL4-7
|
56
|
4
|
1.5
|
2900
|
|
CDL4-8
|
64
|
4
|
1.5
|
2900
|
|
CDL4-10
|
81
|
4
|
2.2
|
2900
|
|
CDL4-12
|
95
|
4
|
2.2
|
2900
|
|
CDL4-14
|
112
|
4
|
3
|
2900
|
|
CDL4-16
|
129
|
4
|
3
|
2900
|
|
CDL4-19
|
153
|
4
|
4
|
2900
|
|
CDL4-22
|
178
|
4
|
4
|
2900
|
|
CDL8-2/1
|
9
|
8
|
0.75
|
2900
|
|
CDL8-2
|
18
|
8
|
0.75
|
2900
|
|
CDL8-3
|
27
|
8
|
1.1
|
2900
|
|
CDL8-4
|
36
|
8
|
1.5
|
2900
|
|
CDL8-5
|
45
|
8
|
2.2
|
2900
|
|
CDL8-6
|
54
|
8
|
2.2
|
2900
|
|
CDL8-8
|
73
|
8
|
3.0
|
2900
|
|
CDL8-10
|
92
|
8
|
4.0
|
2900
|
|
CDL8-12
|
111
|
8
|
4.0
|
2900
|
|
CDL8-14
|
130
|
8
|
5.5
|
2900
|
|
CDL8-16
|
148
|
8
|
5.5
|
2900
|
|
CDL8-18
|
167
|
8
|
7.5
|
2900
|
|
CDL8-20
|
186
|
8
|
7.5
|
2900
|
|
CDL12-2
|
20
|
12
|
1.5
|
2900
|
|
CDL12-3
|
30
|
12
|
2.2
|
2900
|
|
CDL12-4
|
40
|
12
|
3
|
2900
|
|
CDL12-5
|
50
|
12
|
3
|
2900
|
|
CDL12-6
|
60
|
12
|
4
|
2900
|
|
CDL12-7
|
70
|
12
|
5.5
|
2900
|
|
CDL12-8
|
80
|
12
|
5.5
|
2900
|
|
CDL12-9
|
91
|
12
|
5.5
|
2900
|
|
CDL12-10
|
101
|
12
|
7.5
|
2900
|
|
CDL12-12
|
121
|
12
|
7.5
|
2900
|
|
CDL12-14
|
141
|
12
|
11
|
2900
|
|
CDL12-16
|
162
|
12
|
11
|
2900
|
|
CDL12-18
|
183
|
12
|
11
|
2900
|
|
CDL16-2
|
22
|
16
|
2.2
|
2900
|
|
CDL16-3
|
34
|
16
|
3.0
|
2900
|
|
CDL16-4
|
46
|
16
|
4.0
|
2900
|
|
CDL16-5
|
58
|
16
|
5.5
|
2900
|
|
CDL16-6
|
70
|
16
|
5.5
|
2900
|
|
CDL16-7
|
82
|
16
|
7.5
|
2900
|
|
CDL16-8
|
94
|
16
|
7.5
|
2900
|
|
CDL16-10
|
118
|
16
|
11
|
2900
|
|
CDL16-12
|
141
|
16
|
11
|
2900
|
|
CDL16-14
|
166
|
16
|
15
|
2900
|
|
CDL16-16
|
189
|
16
|
15
|
2900
|
|
CDL20-1
|
10
|
20
|
1.1
|
2900
|
|
CDL20-2
|
23
|
20
|
2.2
|
2900
|
|
CDL20-3
|
35
|
20
|
4.0
|
2900
|
|
CDL20-4
|
47
|
20
|
5.5
|
2900
|
|
CDL20-5
|
58
|
20
|
5.5
|
2900
|
|
CDL20-6
|
70
|
20
|
7.5
|
2900
|
|
CDL20-7
|
82
|
20
|
7.5
|
2900
|
|
CDL20-8
|
94
|
20
|
11
|
2900
|
|
CDL20-10
|
118
|
20
|
11
|
2900
|
|
CDL20-12
|
142
|
20
|
15
|
2900
|
|
CDL20-14
|
166
|
20
|
15
|
2900
|
|
CDL20-17
|
202
|
20
|
18.5
|
2900
|
|
CDL32-10-1
|
9
|
32
|
1.5
|
2900
|
|
CDL32-10
|
13
|
32
|
2.2
|
2900
|
|
CDL32-20-2
|
20
|
32
|
3.0
|
2900
|
|
CDL32-20
|
27
|
32
|
4.0
|
2900
|
|
CDL32-30-2
|
33
|
32
|
5.5
|
2900
|
|
CDL32-30
|
40
|
32
|
5.5
|
2900
|
|
CDL32-40-2
|
46
|
32
|
7.5
|
2900
|
|
CDL32-40
|
53
|
32
|
7.5
|
2900
|
|
CDL32-50-2
|
60
|
32
|
11
|
2900
|
|
CDL32-50
|
67
|
32
|
11
|
2900
|
|
CDL32-60-2
|
74
|
32
|
11
|
2900
|
|
CDL32-60
|
81
|
32
|
11
|
2900
|
|
CDL32-70-2
|
88
|
32
|
15
|
2900
|
|
CDL32-70
|
95
|
32
|
15
|
2900
|
|
CDL32-80-2
|
102
|
32
|
15
|
2900
|
|
CDL32-80
|
109
|
32
|
15
|
2900
|
|
CDL32-90-2
|
117
|
32
|
18.5
|
2900
|
|
CDL32-90
|
124
|
32
|
18.5
|
2900
|
|
CDL32-100-2
|
131
|
32
|
18.5
|
2900
|
|
CDL32-100
|
138
|
32
|
18.5
|
2900
|
|
CDL32-110-2
|
146
|
32
|
22
|
2900
|
|
CDL32-110
|
153
|
32
|
22
|
2900
|
|
CDL32-120-2
|
160
|
32
|
22
|
2900
|
|
CDL32-120
|
167
|
32
|
22
|
2900
|
|
CDL32-130-2
|
174
|
32
|
30
|
2900
|
|
CDL32-130
|
181
|
32
|
30
|
2900
|
|
CDL32-140-2
|
189
|
32
|
30
|
2900
|
|
CDL32-140
|
196
|
32
|
30
|
2900
|
|
CDL32-150-2
|
203
|
32
|
30
|
2900
|
|
CDL32-150
|
210
|
32
|
30
|
2900
|
|
CDL32-160-2
|
218
|
32
|
30
|
2900
|
|
CDL32-160
|
225
|
32
|
30
|
2900
|
|
CDL42-10-1
|
16
|
42
|
3.0
|
2900
|
|
CDL42-10
|
20
|
42
|
4.0
|
2900
|
|
CDL42-20-2
|
32
|
42
|
5.5
|
2900
|
|
CDL42-20
|
41
|
42
|
7.5
|
2900
|
|
CDL42-30-2
|
52
|
42
|
11
|
2900
|
|
CDL42-30
|
61
|
42
|
11
|
2900
|
|
CDL42-40-2
|
73
|
42
|
15
|
2900
|
|
CDL42-40
|
81
|
42
|
15
|
2900
|
|
CDL42-50-2
|
93
|
42
|
18.5
|
2900
|
|
CDL42-50
|
101
|
42
|
18.5
|
2900
|
|
CDL42-60-2
|
113
|
42
|
22
|
2900
|
|
CDL42-60
|
122
|
42
|
22
|
2900
|
|
CDL42-70-2
|
134
|
42
|
30
|
2900
|
|
CDL42-70
|
142
|
42
|
30
|
2900
|
|
CDL42-80-2
|
154
|
42
|
30
|
2900
|
|
CDL42-80
|
162
|
42
|
30
|
2900
|
|
CDL42-90-2
|
174
|
42
|
30
|
2900
|
|
CDL42-90
|
183
|
42
|
37
|
2900
|
|
CDL42-100-2
|
194
|
42
|
37
|
2900
|
|
CDL42-100
|
203
|
42
|
37
|
2900
|
|
CDL42-110-2
|
217
|
42
|
45
|
2900
|
|
CDL42-110
|
225
|
42
|
45
|
2900
|
|
CDL42-120-2
|
238
|
42
|
45
|
2900
|
|
CDL42-120
|
247
|
42
|
45
|
2900
|
|
CDL42-130-2
|
259
|
42
|
45
|
2900
|
|
CDL65-10-1
|
13
|
65
|
4.0
|
2900
|
|
CDL65-10
|
20
|
65
|
5.5
|
2900
|
|
CDL65-20-2
|
26
|
65
|
7.5
|
2900
|
|
CDL65-20-1
|
33
|
65
|
11
|
2900
|
|
CDL65-20
|
40
|
65
|
11
|
2900
|
|
CDL65-30-2
|
46
|
65
|
15
|
2900
|
|
CDL65-30-1
|
53
|
65
|
15
|
2900
|
|
CDL65-30
|
60
|
65
|
18.5
|
2900
|
|
CDL65-40-2
|
66
|
65
|
18.5
|
2900
|
|
CDL65-40-1
|
73
|
65
|
22
|
2900
|
|
CDL65-40
|
80
|
65
|
22
|
2900
|
|
CDL65-50-2
|
88
|
65
|
30
|
2900
|
|
CDL65-50-1
|
95
|
65
|
30
|
2900
|
|
CDL65-50
|
102
|
65
|
30
|
2900
|
|
CDL65-60-2
|
110
|
65
|
30
|
2900
|
|
CDL65-60-1
|
117
|
65
|
37
|
2900
|
|
CDL65-60
|
124
|
65
|
37
|
2900
|
|
CDL65-70-2
|
132
|
65
|
37
|
2900
|
|
CDL65-70-1
|
139
|
65
|
37
|
2900
|
|
CDL65-70
|
146
|
65
|
45
|
2900
|
|
CDL65-80-2
|
154
|
65
|
45
|
2900
|
|
CDL65-80-1
|
161
|
65
|
45
|
2900
|
|
CDL85-10-1
|
14
|
85
|
5.5
|
2900
|
|
CDL85-10
|
20
|
85
|
7.5
|
2900
|
|
CDL85-20-2
|
30
|
85
|
11
|
2900
|
|
CDL85-20
|
41
|
85
|
15
|
2900
|
|
CDL85-30-2
|
52
|
85
|
18.5
|
2900
|
|
CDL85-30
|
64
|
85
|
22
|
2900
|
|
CDL85-40-2
|
75
|
85
|
30
|
2900
|
|
CDL85-40
|
86
|
85
|
30
|
2900
|
|
CDL85-50-2
|
98
|
85
|
37
|
2900
|
|
CDL85-50
|
110
|
85
|
37
|
2900
|
|
CDL85-60-2
|
122
|
85
|
45
|
2900
|
|
CDL85-60
|
134
|
85
|
45
|
2900
|
|
CDL120-10
|
18.5
|
120
|
11
|
2950
|
|
CDL120-20-2
|
28.5
|
120
|
15
|
2950
|
|
CDL120-20-1
|
34.5
|
120
|
18.5
|
2950
|
|
CDL120-20
|
40
|
120
|
22
|
2950
|
|
CDL120-30-2
|
49
|
120
|
30
|
2950
|
|
CDL120-30-1
|
55.5
|
120
|
30
|
2950
|
|
CDL120-30
|
61
|
120
|
30
|
2950
|
|
CDL120-40-2
|
69
|
120
|
37
|
2950
|
|
CDL120-40-1
|
76
|
120
|
37
|
2950
|
|
CDL120-40
|
81
|
120
|
45
|
2950
|
|
CDL120-50-2
|
90
|
120
|
45
|
2950
|
|
CDL120-50-1
|
97
|
120
|
45
|
2950
|
|
CDL120-50
|
101.5
|
120
|
55
|
2950
|
|
CDL120-60-2
|
110
|
120
|
55
|
2950
|
|
CDL120-60-1
|
118
|
120
|
55
|
2950
|
|
CDL120-60
|
123
|
120
|
75
|
2950
|
|
CDL120-70-2
|
130
|
120
|
75
|
2950
|
|
CDL120-70-1
|
137.5
|
120
|
75
|
2950
|
|
CDL120-70
|
145
|
120
|
75
|
2950
|
|
CDL150-10-1
|
12.5
|
150
|
11
|
2950
|
|
CDL150-10
|
18.5
|
150
|
15
|
2950
|
|
CDL150-20-2
|
27.5
|
150
|
18.5
|
2950
|
|
CDL150-20-1
|
35
|
150
|
22
|
2950
|
|
CDL150-20
|
40
|
150
|
30
|
2950
|
|
CDL150-30-2
|
49
|
150
|
30
|
2950
|
|
CDL150-30-1
|
56
|
150
|
37
|
2950
|
|
CDL150-30
|
63
|
150
|
37
|
2950
|
|
CDL150-40-2
|
70.5
|
150
|
45
|
2950
|
|
CDL150-40-1
|
77
|
150
|
45
|
2950
|
|
CDL150-40
|
84
|
150
|
50
|
2950
|
|
CDL150-50-2
|
92
|
150
|
55
|
2950
|
|
CDL150-50-1
|
99
|
150
|
75
|
2950
|
|
CDL150-50
|
106.5
|
150
|
75
|
2950
|
|
CDL150-60-2
|
112
|
150
|
75
|
2950
|
|
CDL150-60-1
|
120.5
|
150
|
75
|
2950
|
|
CDL150-60
|
130
|
150
|
75
|
2950
|
|
CDL200-10-B
|
20
|
200
|
18.5
|
2950
|
|
CDL200-10-A
|
24
|
200
|
22
|
2950
|
|
CDL200-10
|
34
|
200
|
30
|
2950
|
|
CDL200-20-2B
|
41
|
200
|
37
|
2950
|
|
CDL200-20-2A
|
49
|
200
|
45
|
2950
|
|
CDL200-20-A
|
59
|
200
|
55
|
2950
|
|
CDL200-20
|
69
|
200
|
55
|
2950
|
|
CDL200-30-2B
|
75
|
200
|
75
|
2950
|
|
CDL200-30-A-B
|
79
|
200
|
75
|
2950
|
|
CDL200-30-2A
|
84
|
200
|
75
|
2950
|
|
CDL200-30-B
|
89
|
200
|
75
|
2950
|
|
CDL200-30-A
|
93
|
200
|
75
|
2950
|
|
CDL200-30
|
103
|
200
|
90
|
2950
|
|
CDL200-40-2B
|
110
|
200
|
90
|
2950
|
|
CDL200-40-2A
|
118
|
200
|
110
|
2950
|
|
CDL200-40-A
|
128
|
200
|
110
|
2950
|
|
CDL200-40
|
138
|
200
|
110
|
2950
|
多级泵,CDLF不锈钢多级离心泵,不锈钢增压离心泵,喷淋离心泵-订货须知：
一、①轻型多级离心泵产品名称与型号
②轻型多级离心泵口径
③轻型多级离心泵扬程（m）
④轻型多级离心泵流量
⑤轻型多级离心泵电机功率（KW）
⑥轻型多级离心泵转速（r/min）
⑦轻型多级离心泵电压〔V〕
⑧轻型多级离心泵吸程（m）
⑨轻型多级离心泵是否带附件以便我们的为您正确选型。
二、若已经由设计单位选定上海滔浪的轻型多级离心泵产品型号，请按轻型多级离心泵型号直接向上海滔浪销售部订购。
三、当使用的场合非常重要或环境比较复杂时,请您尽量提供设计图纸和详细参数，由我们的专家为您审核把关。

(滔浪泵阀专业生产销售CDLF智能变频多级离心泵泵组)
因产品生产批次、型号不同，产品图片及外形尺寸等仅供参考，详情可联系我们的销售人员

|
